Part Image

TCA6507PWRG4 - Texas Instruments

Description: LED Lighting Drivers Low-Vltg 7B I2C and SMBus LED Driver

Download TCA6507PWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

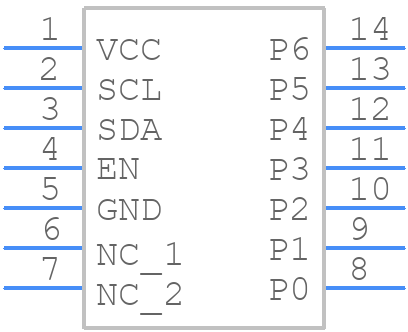

Symbol
TCA6507PWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCA6507PWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TCA6507PWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TCA6507PWRG4 Details

  • Manufacturer Part Number:

    TCA6507PWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    0.4 MHz

TCA6507PWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TCA6507PWRG4 datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it is recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
  • The TCA6507PWRG4 has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. The POR circuit resets the device when the supply voltage (VCC) is below a certain threshold. It is recommended to follow the power-up sequencing guidelines in the datasheet to ensure proper startup.
  • The TCA6507PWRG4's output drivers can sink or source up to 25mA of current per pin. However, the total current sunk or sourced by all output drivers should not exceed 100mA to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the TCA6507PWRG4's I2C interface, check the I2C bus voltage levels, clock frequency, and data transmission rates. Ensure that the I2C bus is properly terminated and that there are no bus conflicts or signal integrity issues. Use an oscilloscope or logic analyzer to debug the I2C signals and identify any errors or anomalies.
  • The TCA6507PWRG4 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to operate the device within the recommended temperature range to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCA6507PWRG4 Overview

Use the download button to access the TCA6507PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCA65, or try a keyword search, such as Display Drivers
