TCA8418RTWR - Texas Instruments

Description: I2C Controlled Keypad Scan IC With Integrated ESD Protection

Download TCA8418RTWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

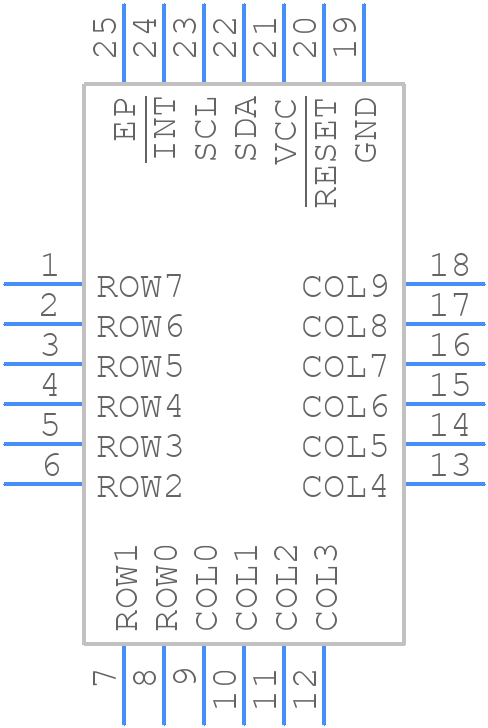

TCA8418RTWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCA8418RTWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN-24
click to zoom
3D Models
TCA8418RTWR - Texas Instruments - 3D model - Quad Flat No-Lead - WQFN-24
click to zoom

TCA8418RTWR Details

  • Manufacturer Part Number:

    TCA8418RTWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

TCA8418RTWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the traces as short as possible. It's also recommended to use a common mode filter and to decouple the power supply with a 10uF capacitor.
  • The TCA8418RTWR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
  • The TCA8418RTWR is rated for operation from -40°C to 85°C, but it's recommended to derate the device for high-temperature operation to ensure reliability.
  • Use a logic analyzer or oscilloscope to monitor the device's signals, and check for proper power supply and decoupling. Also, review the device's datasheet and application notes for common pitfalls and troubleshooting tips.
  • The TCA8418RTWR is a robust device, but it's still recommended to follow proper PCB design and assembly practices to ensure reliability in high-vibration environments. Consider adding mechanical stress relief and using a rigid PCB material.
