TCA9406DCTR - Texas Instruments

Description: 2-Bit Bidirectional 1-MHz I2C Bus and SMBus Voltage-Level Shifter

Download TCA9406DCTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

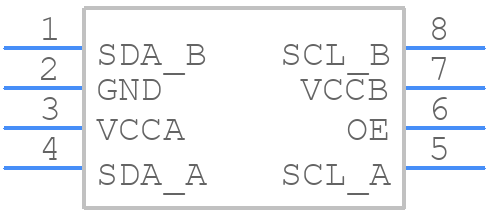

Symbol
TCA9406DCTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCA9406DCTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCT (R-PDSO-G8)
click to zoom
3D Models
TCA9406DCTR - Texas Instruments - 3D model - Small Outline Packages - DCT (R-PDSO-G8)
click to zoom

TCA9406DCTR Details

  • Manufacturer Part Number:

    TCA9406DCTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Delay-Max:

    10 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.95 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP8,.16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Supply Current-Max:

    0.0144 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.3 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.8 mm

TCA9406DCTR Frequently Asked Questions (FAQs)

  • To minimize EMI and noise, it is recommended to follow a star-grounding scheme, keep the input and output traces separate, and use a solid ground plane. Additionally, place the device close to the load and use short traces to reduce inductance.
  • The TCA9406DCTR requires a single 1.8V to 5.5V power supply. Ensure that the power supply is stable and well-regulated. Power sequencing is not critical, but it is recommended to power up the device after the input voltage is stable.
  • The TCA9406DCTR can drive capacitive loads up to 1000 pF. However, it is recommended to limit the capacitive load to 100 pF or less to ensure stability and minimize ringing.
  • To troubleshoot issues, check the power supply voltage, input voltage, and output voltage. Verify that the device is properly powered and that the input and output traces are properly routed. Use an oscilloscope to check for oscillations or ringing. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The TCA9406DCTR is rated for operation up to 85°C. However, the device's performance may degrade at high temperatures. Ensure that the device is properly heatsinked and that the ambient temperature is within the specified range.
