TCA9406YZPR - Texas Instruments

Description: Translation - Voltage Levels I2C-BUS and SMBus Vltg Lev-Translator

Download TCA9406YZPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

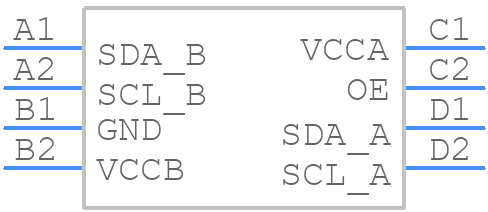

TCA9406YZPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCA9406YZPR - Texas Instruments PCB footprint - BGA - BGA - YZP0008
click to zoom
3D Models
TCA9406YZPR - Texas Instruments - 3D model - BGA - YZP0008
click to zoom

TCA9406YZPR Details

  • Manufacturer Part Number:

    TCA9406YZPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Delay-Max:

    10 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    1.888 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,2X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    0.0144 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.3 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.888 mm

TCA9406YZPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TCA9406YZPR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, using a shielded enclosure and minimizing the number of vias can help reduce EMI.
  • The TCA9406YZPR requires a single 1.8V to 3.6V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Power sequencing is not critical, but it's recommended to power up the device after the input signals are stable.
  • The TCA9406YZPR can drive capacitive loads up to 100 pF. However, it's recommended to limit the capacitive load to 50 pF or less to ensure stability and minimize ringing.
  • To troubleshoot issues with the TCA9406YZPR, start by verifying the power supply voltage and input signals. Check for proper PCB layout and decoupling. Use an oscilloscope to measure the output voltage and input signals. If issues persist, consult the datasheet and application notes for guidance.
  • The TCA9406YZPR is specified to operate from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the output voltage accuracy may be affected. It's recommended to derate the device's performance at high temperatures and consult the datasheet for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCA9406YZPR Overview

Use the download button to access the TCA9406YZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCA94, or try a keyword search, such as Level Translators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
