A good PCB layout for the TCA9416DDFR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, using a shielded cable for the USB connection can help reduce EMI.
The TCA9416DDFR requires a single 3.3V power supply. It's recommended to power the device after the USB host has powered up, and to ensure that the power supply is stable and within the recommended operating range before connecting the USB device.
The TCA9416DDFR has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Also, follow the recommended operating conditions and avoid exceeding the maximum power dissipation.
To implement a robust USB connection with the TCA9416DDFR, ensure that the USB cable is shielded, use a USB connector with a secure connection, and follow the USB specification for cable length and topology. Additionally, implement error detection and correction mechanisms in your firmware to handle data transmission errors.
The TCA9416DDFR has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, handle the device by the package and not the pins, and avoid touching the pins or exposed metal parts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCA9416DDFR Overview

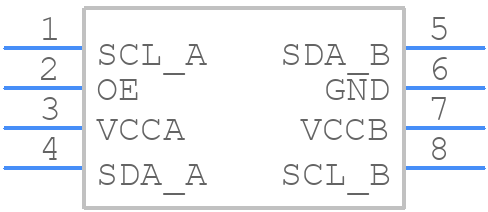

Use the download button to access the TCA9416DDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCA94,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
