TCA9517DGKR - Texas Instruments

Description: TEXAS INSTRUMENTS - TCA9517DGKR - I2C/SMBUS BUS REPEATER, 400KHZ, VSSOP-8

Download TCA9517DGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

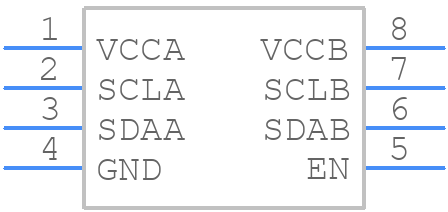

TCA9517DGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCA9517DGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TCA9517DGKR - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TCA9517DGKR Details

  • Manufacturer Part Number:

    TCA9517DGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCA9517DGKR Frequently Asked Questions (FAQs)

  • The TCA9517 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit it to 100 kHz for reliable operation.
  • While the TCA9517 is primarily designed for I2C bus level shifting, it can be used for other protocols like SPI or UART, but it's not recommended as it may not provide the necessary signal conditioning and may not meet the protocol's timing requirements.
  • The TCA9517 requires a dual power supply (VCC1 and VCC2) and a bias voltage (VBIAS) to operate correctly. Ensure that VCC1 and VCC2 are within the recommended voltage range (1.65V to 5.5V) and VBIAS is set to the midpoint of VCC1 and VCC2.
  • The TCA9517 can drive capacitive loads up to 400 pF, but it's recommended to limit the load capacitance to 100 pF for reliable operation.
  • Yes, the TCA9517 can be used in a multi-master I2C bus configuration, but it's essential to ensure that the masters are properly synchronized and that the bus is properly terminated to prevent signal reflections and errors.
