TCAL6408DTUR - Texas Instruments

Description: I/O Expander 8 I2C, SMBus 1 MHz 16-X2QFN (1.6x1.6), 1.08V ~ 3.6V, 1MHz, -40°C ~ 125°C

Download TCAL6408DTUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

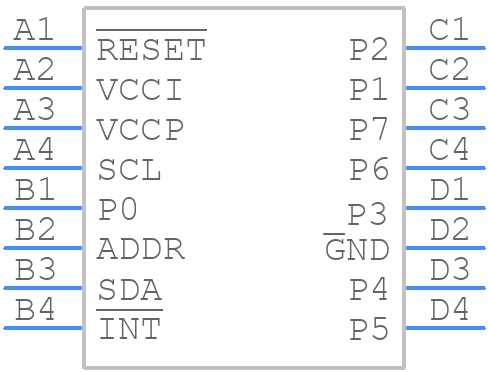

Symbol
TCAL6408DTUR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAL6408DTUR - Texas Instruments PCB footprint - Other - Other - DTU0016A
click to zoom
3D Models
TCAL6408DTUR - Texas Instruments - 3D model - Other - DTU0016A
click to zoom

TCAL6408DTUR Details

  • Manufacturer Part Number:

    TCAL6408DTUR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    2

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    S-PBGA-N16

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of I/O Lines:

    8

  • Number of Ports:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    160 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

TCAL6408DTUR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces short and away from the power traces. Additionally, use a common mode choke and ferrite beads to filter out high-frequency noise.
  • To configure the TCAL6408DTUR for I2C communication, set the A0 and A1 pins to the desired address, ensure the SCL and SDA pins are connected to the I2C bus, and use a pull-up resistor on the SCL and SDA lines. Also, make sure to follow the I2C protocol timing specifications.
  • The maximum current rating for the TCAL6408DTUR's output drivers is 25mA per pin, with a total device current limit of 100mA. Exceeding these limits may cause damage to the device.
  • The TCAL6408DTUR's POR and BOR features are enabled by default. To handle these features, ensure that the power supply is stable and within the recommended operating range. You can also use external circuitry to filter out power glitches and noise.
  • The recommended operating temperature range for the TCAL6408DTUR is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAL6408DTUR Overview

Use the download button to access the TCAL6408DTUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAL6, or try a keyword search, such as Parallel IO Ports
