Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short traces, avoid vias, and add decoupling capacitors close to the device to minimize EMI and noise.
To achieve low-power operation, set the device to the lowest possible frequency, use the lowest possible voltage supply, and enable the power-down mode when not in use. Additionally, use the built-in brown-out detector to detect power failures and reset the device.
The maximum allowed voltage on the input pins of the TCAL6416PWR is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
To troubleshoot issues with the TCAL6416PWR, start by checking the power supply voltage, clock frequency, and input signals. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. Also, review the device's configuration and programming to ensure it's correct and up-to-date.
The TCAL6416PWR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's operating frequency and voltage supply at high temperatures to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAL6416PWR Overview

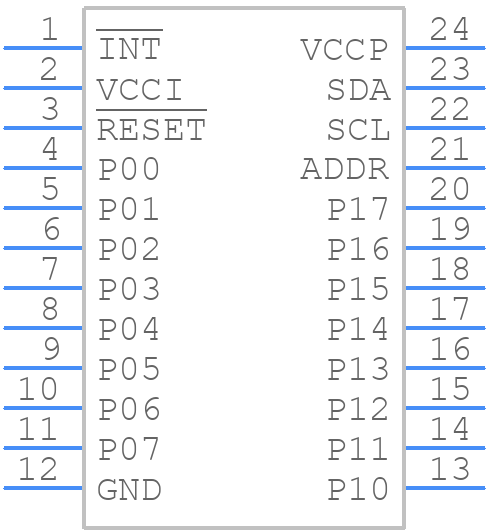

Use the download button to access the TCAL6416PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAL6,
or try a keyword search, such as Parallel IO Ports
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
