Part Image

TCAL9538RSVR - Texas Instruments

Description: Interface - I/O Expanders ULTRA LOW VOLTAGE AGILE I/O EXPANDER I/O Expander 8 I2C, SMBus 1 MHz 16-UQFN (2.6x1.8)

Download TCAL9538RSVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

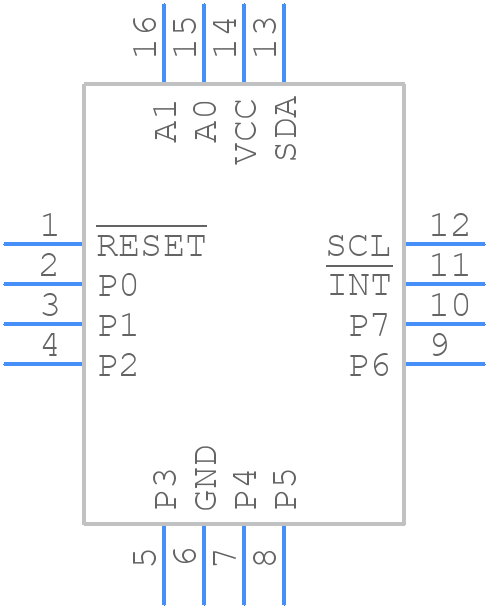

TCAL9538RSVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAL9538RSVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSV0016A
click to zoom
3D Models
TCAL9538RSVR - Texas Instruments - 3D model - Quad Flat No-Lead - RSV0016A
click to zoom

TCAL9538RSVR Details

  • Manufacturer Part Number:

    TCAL9538RSVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    4

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of I/O Lines:

    8

  • Number of Ports:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    160 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

TCAL9538RSVR Frequently Asked Questions (FAQs)

  • The maximum current rating for each output of the TCAL9538RSVR is 25mA. However, it's recommended to limit the current to 10mA per output to ensure reliable operation and prevent overheating.
  • The TCAL9538RSVR can be configured for I2C or SMBus operation by setting the appropriate values on the ADDR pins (ADDR0-ADDR2) during power-up. Refer to the datasheet for the specific pin configurations for each mode.
  • The RESET pin is an active-low input that resets the internal registers and sets the device to its default state. It's recommended to tie the RESET pin to VCC through a 1kΩ resistor to ensure proper operation. You can also use the RESET pin to reset the device programmatically by driving it low for at least 1ms.
  • The TCAL9538RSVR has built-in POR and BOR features that reset the device during power-up or brown-out conditions. To handle these features, ensure that your system design includes a proper power-up sequence and decoupling capacitors to prevent voltage droops. You can also use external circuitry to detect and respond to POR and BOR events.
  • To ensure reliable operation and minimize noise, follow the recommended layout and routing guidelines in the datasheet. Keep the device's power and ground pins close to the power supply, and use separate power and ground planes. Route the I2C/SMBus lines as differential pairs, and avoid crossing them over other signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAL9538RSVR Overview

Use the download button to access the TCAL9538RSVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAL9, or try a keyword search, such as Parallel IO Ports

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
