TCAL9539PWR - Texas Instruments

Description: Interface - I/O Expanders 16-bit low-voltage IC-bus and SMBus I/O expander with interrupt, reset and agile I/O configuration 24-TSSOP -40 to 125

Download TCAL9539PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

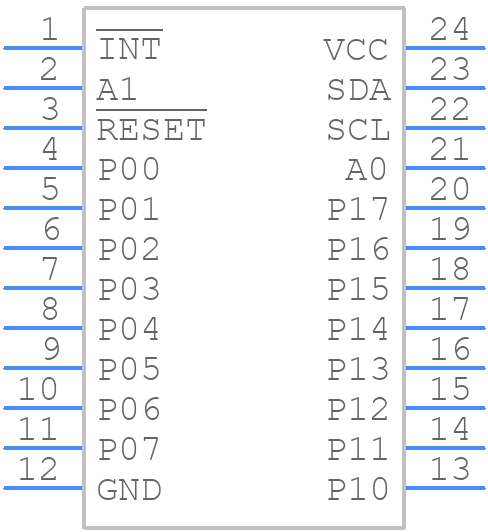

TCAL9539PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAL9539PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
TCAL9539PWR - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

TCAL9539PWR Details

  • Manufacturer Part Number:

    TCAL9539PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    160 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

TCAL9539PWR Frequently Asked Questions (FAQs)

  • The maximum current rating for each output of the TCAL9539PWR is 25mA. However, it's recommended to limit the current to 10mA per output to ensure reliable operation and prevent overheating.
  • The TCAL9539PWR can be configured for I2C or SMBus operation by setting the appropriate values on the ADDR pins (ADDR0-ADDR2). For I2C operation, set ADDR0-ADDR2 to 0, and for SMBus operation, set ADDR0-ADDR2 to 1. Refer to the datasheet for specific pin configurations.
  • The RESET pin is an active-low input that resets the device to its default state. To use it, connect the RESET pin to a logic low signal (typically through a pull-down resistor) for at least 1.5us to reset the device. This can be useful for initializing the device or recovering from a fault condition.
  • The TCAL9539PWR has built-in overcurrent protection for each output. If an output is short-circuited or overloaded, the device will limit the current to prevent damage. However, it's still recommended to add external current-limiting resistors or fuses to protect the device and surrounding circuitry.
  • The recommended operating temperature range for the TCAL9539PWR is -40°C to 85°C. However, the device can operate up to 125°C for short periods during soldering or other manufacturing processes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAL9539PWR Overview

Use the download button to access the TCAL9539PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAL9, or try a keyword search, such as Parallel IO Ports

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
