Texas Instruments recommends following a star-topology layout, keeping the device close to the power source, and using separate power and ground planes for analog and digital sections. Additionally, use short, direct traces for the I2C bus and avoid crossing signal lines over the power planes.
The device has a thermal pad on the bottom, which should be connected to a thermal plane or a heat sink. Ensure good thermal conductivity between the device and the heat sink. In high-temperature applications, consider using a thermal interface material and follow the recommended operating temperature range.
The TCAL9539RTWRQ1 supports I2C bus speeds up to 400 kHz. Ensure that the I2C bus timing meets the requirements specified in the datasheet, including rise and fall times, clock frequency, and bus capacitance.
The TCAL9539RTWRQ1 supports multi-master I2C bus operation. To configure the device for multiple masters, ensure that each master has a unique address and follows the I2C bus arbitration protocol. The device will automatically handle bus arbitration and acknowledge signals.
The POR threshold is typically around 1.2 V, and the BOR threshold is around 2.2 V. These thresholds ensure that the device resets properly during power-up and power-down sequences. System designers should ensure that the power supply voltage meets these thresholds to prevent unwanted resets or malfunctions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TCAL9539RTWRQ1 Overview

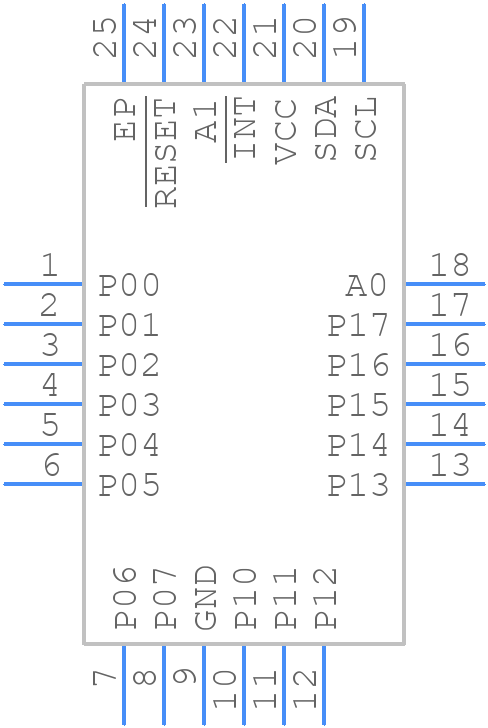

Use the download button to access the TCAL9539RTWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAL9,
or try a keyword search, such as Parallel IO Ports
