TCAN1042DQ1 - Texas Instruments

Description: Automotive Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1042DQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

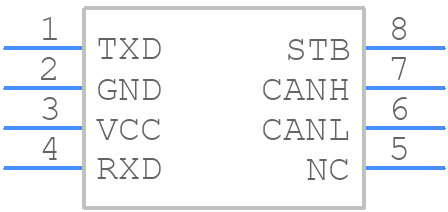

TCAN1042DQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1042DQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008B
click to zoom
3D Models
TCAN1042DQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008B
click to zoom

TCAN1042DQ1 Details

  • Manufacturer Part Number:

    TCAN1042DQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TCAN1042DQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1042DQ1 is 40 meters, assuming a 120-ohm twisted-pair cable and a data rate of 1 Mbps.
  • To ensure EMC with the TCAN1042DQ1, follow proper PCB layout guidelines, use a common-mode choke, and add shielding to the CAN bus cables. Additionally, ensure that the device is properly grounded and decoupled.
  • The recommended termination scheme for the TCAN1042DQ1 is a 120-ohm resistor at each end of the CAN bus, with a common-mode choke in series with the resistor at one end.
  • The TCAN1042DQ1 has built-in error detection and fault handling mechanisms. Use the device's error counters and status registers to detect and respond to bus faults, and implement a watchdog timer to reset the device in case of a fault.
  • The power consumption of the TCAN1042DQ1 depends on the operating mode. In normal mode, the typical current consumption is 12 mA, and in standby mode, it is 10 uA.
