TCAN1042HGD - Texas Instruments

Description: Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1042HGD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

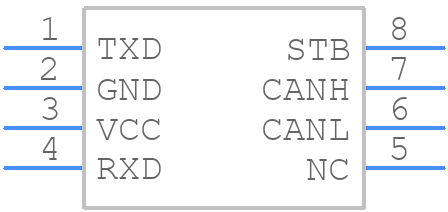

TCAN1042HGD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1042HGD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TCAN1042HGD - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TCAN1042HGD Details

  • Manufacturer Part Number:

    TCAN1042HGD

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TCAN1042HGD Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1042HGD is 40 meters, assuming a transmission rate of 1 Mbps and a bus load of 30 nodes.
  • To configure the TCAN1042HGD for silent mode, set the TX pin to a high-impedance state by writing a logic high to the TXEN pin. This will prevent the device from transmitting data on the bus.
  • The minimum input voltage required for the TCAN1042HGD to operate is 4.5 V, although it is recommended to operate the device at a minimum of 4.75 V to ensure reliable operation.
  • Yes, the TCAN1042HGD can be used in a multi-master configuration, but it requires additional external circuitry to handle the arbitration process and prevent bus conflicts.
  • To troubleshoot CAN bus errors using the TCAN1042HGD, use a CAN bus analyzer tool to monitor the bus activity and identify the source of the error. The TCAN1042HGD also provides error counters and status registers that can be used to diagnose errors.
