TCAN1042HVDQ1 - Texas Instruments

Description: Automotive Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1042HVDQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

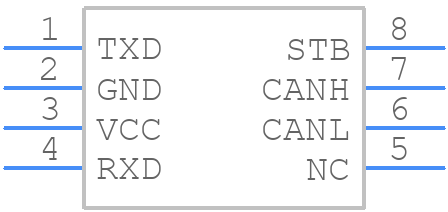

TCAN1042HVDQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1042HVDQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008B (SOIC-8)
click to zoom
3D Models
TCAN1042HVDQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008B (SOIC-8)
click to zoom

TCAN1042HVDQ1 Details

  • Manufacturer Part Number:

    TCAN1042HVDQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TCAN1042HVDQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1042HVDQ1 is 40 meters, assuming a transmission rate of 1 Mbps and a cable with a characteristic impedance of 120 ohms.
  • To ensure EMC with the TCAN1042HVDQ1, follow proper PCB layout guidelines, use a common-mode choke, and add shielding to the CAN bus cables. Additionally, ensure that the device is properly grounded and decoupled.
  • The recommended termination resistor value for the TCAN1042HVDQ1 is 120 ohms, which is the characteristic impedance of the CAN bus.
  • Yes, the TCAN1042HVDQ1 supports multi-master configuration, but it requires careful design and implementation to avoid bus conflicts and ensure reliable communication.
  • The TCAN1042HVDQ1 has built-in error detection and fault-tolerant features, including bit-stuffing, CRC checks, and error counters. Implement a robust error-handling mechanism in your application code to detect and recover from bus faults.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1042HVDQ1 Overview

Use the download button to access the TCAN1042HVDQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces
