TCAN1042HVDR - Texas Instruments

Description: Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1042HVDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

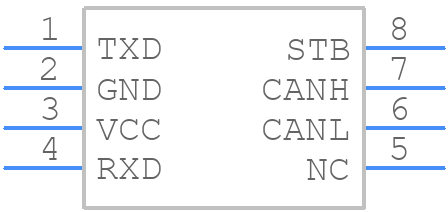

Symbol
TCAN1042HVDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1042HVDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC -
click to zoom
3D Models
TCAN1042HVDR - Texas Instruments - 3D model - Small Outline Packages - SOIC -
click to zoom

TCAN1042HVDR Details

  • Manufacturer Part Number:

    TCAN1042HVDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TCAN1042HVDR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1042HVDR is 40 meters, assuming a transmission rate of 1 Mbps and a cable with a characteristic impedance of 120 ohms.
  • To ensure EMC with the TCAN1042HVDR, follow proper PCB layout guidelines, use a common-mode choke, and add shielding to the CAN bus cables. Additionally, ensure that the device is properly grounded and decoupled.
  • The TCAN1042HVDR supports up to 127 nodes on a single CAN bus, as per the CAN protocol specification.
  • The TCAN1042HVDR has built-in error detection and fault-tolerant capabilities. It can detect and recover from bus faults, such as short circuits, and can also detect errors in transmitted data. Implement a robust error-handling mechanism in your application code to handle these events.
  • The power consumption of the TCAN1042HVDR depends on the operating mode. In normal mode, the typical current consumption is around 12 mA, while in standby mode, it is around 10 uA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1042HVDR Overview

Use the download button to access the TCAN1042HVDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
