TCAN1042HVDRBTQ1 - Texas Instruments

Description: Automotive Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1042HVDRBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

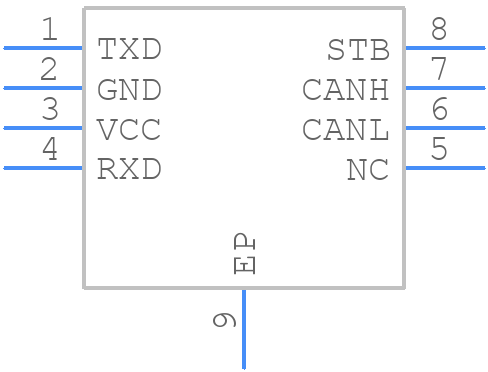

TCAN1042HVDRBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1042HVDRBTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008F_11
click to zoom
3D Models
TCAN1042HVDRBTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008F_11
click to zoom

TCAN1042HVDRBTQ1 Details

  • Manufacturer Part Number:

    TCAN1042HVDRBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1042HVDRBTQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1042HVDRBTQ1 is 40 meters, assuming a transmission rate of 1 Mbps and a cable with a characteristic impedance of 120 ohms.
  • The TCAN1042HVDRBTQ1 has built-in error detection and fault-tolerant capabilities, including bit-stuffing error detection, CRC error detection, and bus-off detection. It also has a fault-tolerant mode that allows the device to continue operating even if a fault is detected on the bus.
  • The power consumption of the TCAN1042HVDRBTQ1 depends on the operating mode. In normal mode, the typical power consumption is around 12 mA, while in standby mode, it is around 10 uA.
  • Yes, the TCAN1042HVDRBTQ1 is compatible with other CAN transceivers that comply with the ISO 11898-2 standard. However, it's recommended to verify compatibility with specific devices and systems.
  • The operating temperature range of the TCAN1042HVDRBTQ1 is -40°C to 125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
