Texas Instruments provides a recommended PCB layout in the application note SLVAE73, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN1043ATDMTRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. To configure the device for a specific protocol, refer to the device's datasheet and the protocol's specification document. You may need to adjust the bit rate, sampling point, and other parameters to match the requirements of the specific protocol.
The maximum cable length supported by the TCAN1043ATDMTRQ1 depends on the specific CAN bus protocol and the cable characteristics. As a general guideline, the device supports cable lengths up to 40 meters for a 1 Mbps bit rate and up to 10 meters for a 500 kbps bit rate. However, it's recommended to consult the CAN bus protocol specification and perform signal integrity analysis to determine the maximum cable length for a specific application.
To troubleshoot CAN bus communication issues with the TCAN1043ATDMTRQ1, start by checking the device's power supply, clock signal, and pin connections. Use a logic analyzer or oscilloscope to monitor the CAN bus signals and verify that they meet the protocol's specifications. Check for errors, such as bit stuffing, CRC errors, or acknowledgement errors, and consult the device's datasheet and application notes for guidance on troubleshooting and error handling.
Yes, the TCAN1043ATDMTRQ1 is designed to operate over an extended temperature range of -40°C to 125°C, making it suitable for use in automotive and industrial applications. However, it's essential to ensure that the device is properly derated and that the system design takes into account the thermal management and power supply requirements to ensure reliable operation over the entire temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1043ATDMTRQ1 Overview

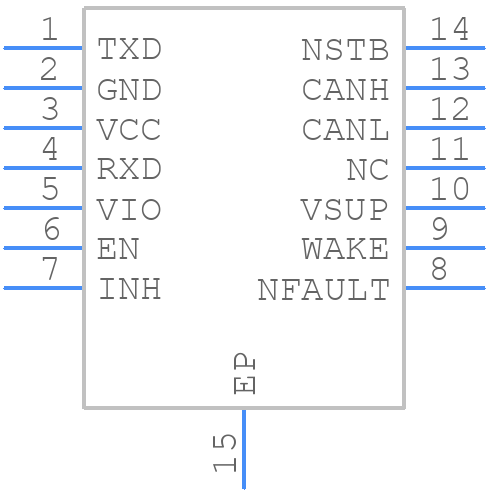

Use the download button to access the TCAN1043ATDMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
