TCAN1043ATDRQ1 - Texas Instruments

Description: CAN Interface IC Automotive CAN FD transceiver with wake/inhibit/sleep

Download TCAN1043ATDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

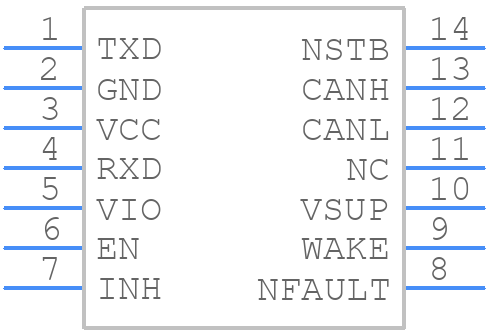

TCAN1043ATDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1043ATDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
TCAN1043ATDRQ1 - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

TCAN1043ATDRQ1 Details

  • Manufacturer Part Number:

    TCAN1043ATDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TCAN1043ATDRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by TCAN1043ATDRQ1 is 40 meters, assuming a proper termination and a maximum bus speed of 1 Mbps.
  • To configure the TCAN1043ATDRQ1 for silent mode, you need to set the STB pin high and the EN pin low. This will put the transceiver in a low-power state, and it will not transmit or receive data.
  • For optimal performance, it is recommended to follow a star topology for the CAN bus, with the transceiver at the center. Keep the CANH and CANL traces as short as possible, and use a differential impedance of 120 ohms. Also, ensure that the power and ground planes are solid and well-decoupled.
  • The TCAN1043ATDRQ1 has built-in fault detection and error reporting capabilities. You can use the ESR pin to detect bus faults, and the RXE pin to detect receive errors. You can also use the STB pin to detect transmitter errors.
  • The recommended power-up sequence for the TCAN1043ATDRQ1 is to first apply power to the VCC pin, followed by the VIO pin. This ensures that the internal voltage regulators are properly initialized before the transceiver is enabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1043ATDRQ1 Overview

Use the download button to access the TCAN1043ATDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces
