TCAN1043DMTRQ1 - Texas Instruments

Description: CAN Interface IC Fault Protected CAN Transceiver With CAN FD and Wake Input

Download TCAN1043DMTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

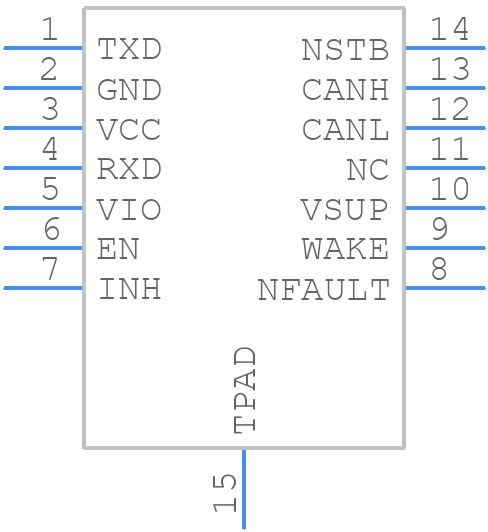

TCAN1043DMTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1043DMTRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMT
click to zoom
3D Models
TCAN1043DMTRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DMT
click to zoom

TCAN1043DMTRQ1 Details

  • Manufacturer Part Number:

    TCAN1043DMTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1043DMTRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1043DMTRQ1 is 40 meters, assuming a 120-ohm cable impedance and a 500-kbps data rate.
  • To ensure EMC with the TCAN1043DMTRQ1, follow proper PCB layout and design guidelines, use a common-mode choke, and ensure proper shielding and grounding of the device and surrounding components.
  • The recommended termination scheme for the TCAN1043DMTRQ1 is a 120-ohm resistor at each end of the CAN bus, with a common-mode choke and capacitors for noise filtering.
  • The TCAN1043DMTRQ1 has built-in error detection and fault handling mechanisms, including bit error detection, stuff error detection, and bus-off detection. Implement a fault-tolerant design and use the device's error flags to detect and respond to bus faults.
  • The power consumption of the TCAN1043DMTRQ1 depends on the operating mode and frequency. In normal mode, the device consumes around 12 mA at 5 V, and in standby mode, it consumes around 10 μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1043DMTRQ1 Overview

Use the download button to access the TCAN1043DMTRQ1 schematic symbol, PCB footprint, and 3D model.
