Texas Instruments provides a recommended PCB layout in the application note SLVAE73, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Texas Instruments provides a troubleshooting guide in the application note SLVAE74, which includes steps to identify and resolve common issues, such as bus faults, errors, and communication problems. Additionally, the device has built-in diagnostic features, such as error counters and status registers, that can be used to debug issues.
The maximum cable length supported by the TCAN1043HGDMTRQ1 depends on the specific application and the characteristics of the cable. However, as a general guideline, the device can support cable lengths up to 40 meters at a data rate of 1 Mbps. For longer cable lengths, repeaters or other signal conditioning devices may be required.
To ensure EMC with the TCAN1043HGDMTRQ1, follow the guidelines in the application note SLVAE75, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic radiation and susceptibility. Additionally, the device has built-in features, such as slew rate control and common-mode choke, to help reduce EMI.
The TCAN1043HGDMTRQ1 has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1043HGDMTRQ1 Overview

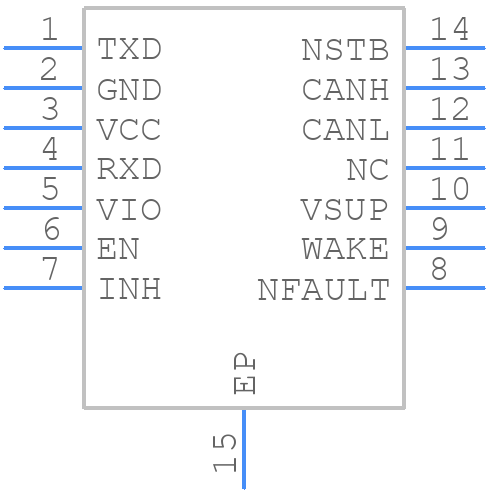

Use the download button to access the TCAN1043HGDMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
