TCAN1043HGDMTTQ1 - Texas Instruments

Description: Fault Protected CAN Transceiver With CAN FD and Wake Input

Download TCAN1043HGDMTTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

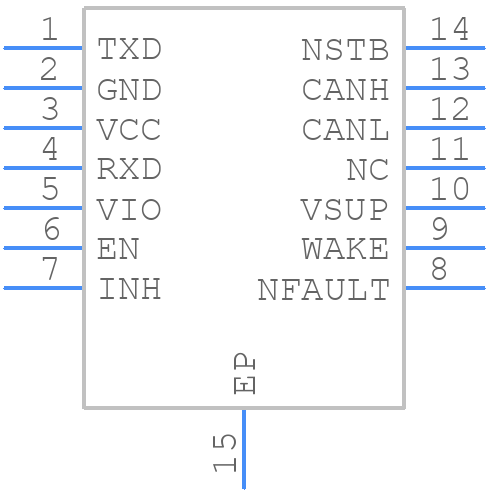

TCAN1043HGDMTTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1043HGDMTTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMT0014A
click to zoom
3D Models
TCAN1043HGDMTTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DMT0014A
click to zoom

TCAN1043HGDMTTQ1 Details

  • Manufacturer Part Number:

    TCAN1043HGDMTTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1043HGDMTTQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1043HGDMTTQ1 is 40 meters, assuming a transmission rate of 1 Mbps and a cable with a characteristic impedance of 120 ohms.
  • To ensure EMC with the TCAN1043HGDMTTQ1, follow proper PCB layout guidelines, use a common-mode choke, and add shielding to the CAN bus cables. Additionally, ensure that the device is properly grounded and decoupled.
  • The recommended termination scheme for the TCAN1043HGDMTTQ1 is a 120-ohm resistor at each end of the CAN bus, with a common-mode choke in series with the resistor to reduce electromagnetic emissions.
  • The TCAN1043HGDMTTQ1 has built-in error detection and fault handling mechanisms. Use the device's error counters and status registers to detect and respond to bus faults, and implement a fault-tolerant communication protocol to ensure reliable data transmission.
  • The maximum operating temperature range for the TCAN1043HGDMTTQ1 is -40°C to 125°C, with a junction temperature of up to 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1043HGDMTTQ1 Overview

Use the download button to access the TCAN1043HGDMTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
