TCAN1048AVDMTRQ1 - Texas Instruments

Description: Enhanced Automotive dual CAN transceiver with inverted Standby and 1.8-V I/O Support

Download TCAN1048AVDMTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

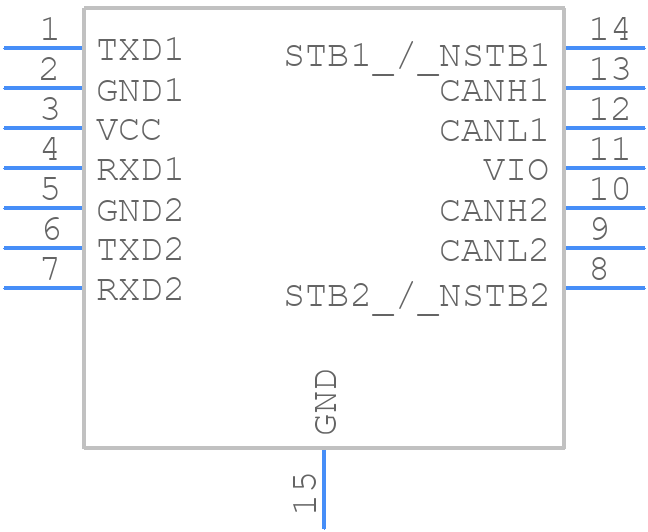

TCAN1048AVDMTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1048AVDMTRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMT0014B
click to zoom
3D Models
TCAN1048AVDMTRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DMT0014B
click to zoom

TCAN1048AVDMTRQ1 Details

  • Manufacturer Part Number:

    TCAN1048AVDMTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-14

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    260 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TCAN1048AVDMTRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by TCAN1048AVDMTRQ1 is 40 meters, as per the CAN specification. However, this can vary depending on the specific application, cable quality, and noise environment.
  • The TCAN1048AVDMTRQ1 can be configured for a specific CAN bus speed by setting the appropriate values for the baud rate prescaler (BRP) and the time quanta (TQ) registers. The datasheet provides a table to calculate these values based on the desired bus speed.
  • The power consumption of TCAN1048AVDMTRQ1 in sleep mode is typically around 10 μA, making it suitable for battery-powered applications. However, this value can vary depending on the specific operating conditions and the state of the device.
  • No, the TCAN1048AVDMTRQ1 is a CAN transceiver and does not support CAN FD. It is designed for traditional CAN applications with a maximum data rate of 1 Mbps.
  • To protect the TCAN1048AVDMTRQ1 from EMI and ESD, it is recommended to use proper PCB layout techniques, such as separating the CAN bus lines from other signals, using shielding, and adding EMI filters. Additionally, ESD protection devices can be added to the CAN bus lines to prevent damage from electrostatic discharge.
