TCAN1051GDRBTQ1 - Texas Instruments

Description: Automotive Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1051GDRBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

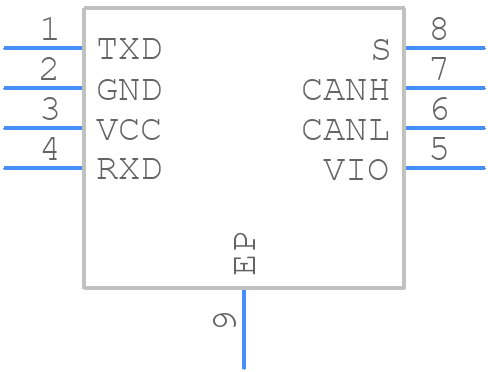

TCAN1051GDRBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1051GDRBTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB 896
click to zoom
3D Models
TCAN1051GDRBTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB 896
click to zoom

TCAN1051GDRBTQ1 Details

  • Manufacturer Part Number:

    TCAN1051GDRBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1051GDRBTQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1051GDRBTQ1 is 40 meters, assuming a proper termination and a maximum bit rate of 1 Mbps.
  • The TCAN1051GDRBTQ1 is a CAN transceiver and does not require configuration for a specific CAN bus protocol. It is compatible with all CAN protocols, including CAN 2.0A, CAN 2.0B, and CAN FD.
  • The power consumption of the TCAN1051GDRBTQ1 in sleep mode is typically around 10 μA, making it suitable for battery-powered applications.
  • Yes, the TCAN1051GDRBTQ1 is AEC-Q100 qualified and meets the requirements for automotive applications, including temperature range, voltage range, and electromagnetic compatibility (EMC).
  • The TCAN1051GDRBTQ1 has built-in ESD protection, but it is still recommended to follow proper handling and storage procedures to prevent ESD damage. Additionally, using an ESD-protected workstation and wearing an ESD strap can help prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1051GDRBTQ1 Overview

Use the download button to access the TCAN1051GDRBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces
