TCAN1051GVDRBTQ1 - Texas Instruments

Description: Automotive Fault Protected CAN Transceiver With Flexible Data-Rate

Download TCAN1051GVDRBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

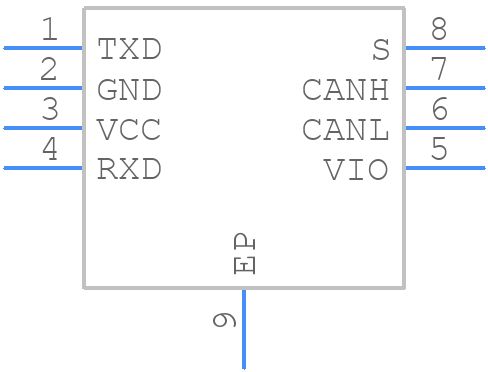

Symbol
TCAN1051GVDRBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1051GVDRBTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008F
click to zoom
3D Models
TCAN1051GVDRBTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008F
click to zoom

TCAN1051GVDRBTQ1 Details

  • Manufacturer Part Number:

    TCAN1051GVDRBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1051GVDRBTQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TCAN1051GVDRBTQ1 involves keeping the CAN transceiver and the microcontroller close together, using a ground plane, and minimizing the length of the CAN bus lines. Additionally, using a common mode choke and a TVS diode can help reduce EMI.
  • To ensure proper biasing, connect the VCC pin to a 3.3V or 5V power supply, and the GND pin to the system ground. The VIO pin should be connected to the I/O voltage of the microcontroller. Additionally, the CANH and CANL pins should be terminated with a 120 ohm resistor.
  • The maximum cable length supported by the TCAN1051GVDRBTQ1 is dependent on the bit rate and the type of cable used. For a 1 Mbps bit rate, the maximum cable length is approximately 40 meters. However, this can be extended to 100 meters or more using repeaters or by reducing the bit rate.
  • To protect the TCAN1051GVDRBTQ1 from voltage transients and surges, use a TVS diode or a transient voltage suppressor on the CAN bus lines. Additionally, consider using a common mode choke to reduce electromagnetic interference.
  • The TCAN1051GVDRBTQ1 has an operating temperature range of -40°C to 125°C. However, the device can be operated at temperatures up to 150°C for short periods of time.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1051GVDRBTQ1 Overview

Use the download button to access the TCAN1051GVDRBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
