The maximum cable length supported by the TCAN1051HGDRQ1 is dependent on the specific application and the characteristics of the cable. However, as a general guideline, the CAN bus specification recommends a maximum cable length of 40 meters. Longer cable lengths may be possible with the use of repeaters or other signal conditioning devices.
The TCAN1051HGDRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and ISO 11898-2. To configure the device for a specific protocol, you need to set the appropriate registers and pins according to the protocol requirements. Refer to the datasheet and the specific protocol specification for more information.
The power consumption of the TCAN1051HGDRQ1 depends on the operating mode and the supply voltage. According to the datasheet, the typical power consumption is around 10 mA in normal mode and 1 mA in standby mode, with a supply voltage of 5V. However, the actual power consumption may vary depending on the specific application and operating conditions.
To troubleshoot CAN bus communication issues with the TCAN1051HGDRQ1, you can use a CAN bus analyzer tool to monitor the bus activity and identify any errors or issues. You can also check the device's registers and pins to ensure that they are properly configured and functioning correctly. Additionally, verify that the CAN bus is properly terminated and that there are no issues with the physical connection.
The TCAN1051HGDRQ1 is a CAN transceiver that is compatible with other CAN transceivers that conform to the ISO 11898-2 standard. However, it's recommended to verify the compatibility of the specific devices and systems before integrating them into a CAN bus network.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1051HGDRQ1 Overview

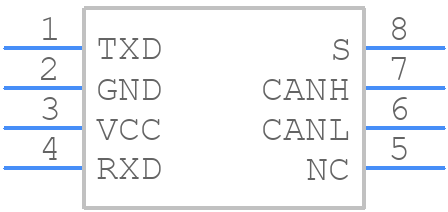

Use the download button to access the TCAN1051HGDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
