TCAN1144DMTRQ1 - Texas Instruments

Description: CAN Interface IC Automotive enhanced CAN FD and high speed CAN transceiver with Watchdog, LIMP, and bus diagnostics 14-VSON -40 to 150

Download TCAN1144DMTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

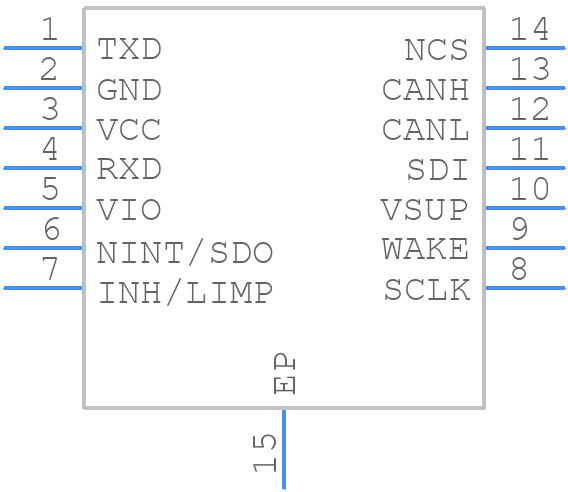

TCAN1144DMTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1144DMTRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMT0014B
click to zoom
3D Models
TCAN1144DMTRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DMT0014B
click to zoom

TCAN1144DMTRQ1 Details

  • Manufacturer Part Number:

    TCAN1144DMTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-11-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    120 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1144DMTRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN1144DMTRQ1 is approximately 40 meters, depending on the specific application and bus topology.
  • The TCAN1144DMTRQ1 is a CAN transceiver that supports various CAN protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. Configuration is typically done through the microcontroller or external circuitry, and the specific configuration will depend on the protocol and application requirements.
  • The typical power consumption of the TCAN1144DMTRQ1 is around 70 mA in normal operation, but this can vary depending on the specific application, bus load, and operating conditions.
  • The TCAN1144DMTRQ1 is compatible with both 3.3V and 5V microcontrollers, as it has a wide supply voltage range of 3.0V to 5.5V.
  • To protect the TCAN1144DMTRQ1 from EMI, it is recommended to use proper PCB layout techniques, such as separating the CAN bus lines from other signals, using shielding, and implementing EMI filters or common-mode chokes.
