Texas Instruments provides a recommended PCB layout in the application note SLVAE67, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN1167DMTRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and CAN FD. Configuration is typically done through the microcontroller or system-on-chip (SoC) that interfaces with the transceiver. Refer to the microcontroller or SoC datasheet for specific configuration details.
The maximum cable length supported by the TCAN1167DMTRQ1 depends on the specific CAN bus protocol and the system design. In general, the CAN bus specification recommends a maximum cable length of 40 meters for a single segment. However, longer cable lengths can be achieved with the use of repeaters or by optimizing the system design.
Texas Instruments provides a troubleshooting guide in the application note SLVAE68, which covers common issues and error conditions, including bus faults, error frames, and transceiver faults. The guide provides step-by-step procedures for identifying and resolving these issues.
Yes, the TCAN1167DMTRQ1 is rated for operation over an extended temperature range of -40°C to 125°C, making it suitable for use in automotive and industrial applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1167DMTRQ1 Overview

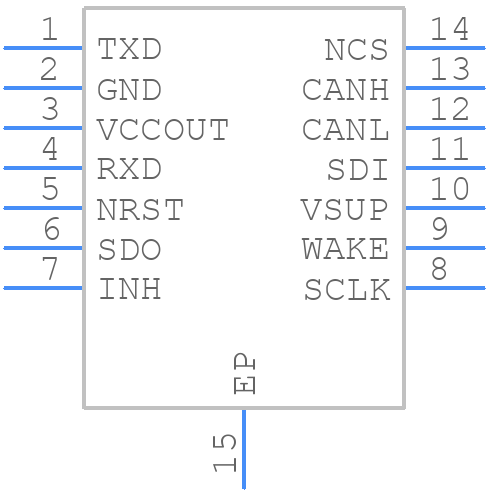

Use the download button to access the TCAN1167DMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
