Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN1462DRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and CAN FD. Configuration is typically done through the microcontroller or system-on-chip (SoC) that interfaces with the TCAN1462DRQ1. Refer to the microcontroller or SoC datasheet and the TCAN1462DRQ1 datasheet for specific configuration details.
The maximum cable length supported by the TCAN1462DRQ1 depends on the specific CAN bus protocol and the system design. In general, the CAN bus specification recommends a maximum cable length of 40 meters for a single segment. However, longer cable lengths can be achieved with the use of repeaters or by optimizing the system design. Consult the CAN bus specification and the TCAN1462DRQ1 datasheet for more information.
Texas Instruments provides a troubleshooting guide in their application note SLVAE74, which covers common issues and errors with the TCAN1462DRQ1, including bus faults, error frames, and transmission errors. The guide provides step-by-step procedures for identifying and resolving these issues.
Yes, the TCAN1462DRQ1 is designed to meet the requirements of various automotive and industrial standards, including ISO 11898-2, SAE J1939, and IEC 61076-2-101. It is also qualified for automotive and industrial applications, including AEC-Q100 and IATF 16949.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN1462DRQ1 Overview

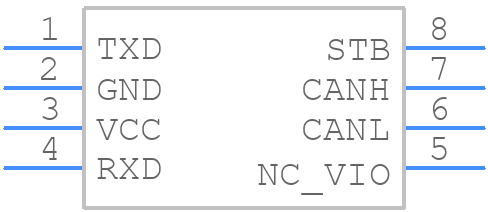

Use the download button to access the TCAN1462DRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1,
or try a keyword search, such as Network Interfaces
