TCAN1462VDRBRQ1 - Texas Instruments

Description: CAN Interface IC Automotive signal improvement CAN FD transceiver with VIO and standby

Download TCAN1462VDRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

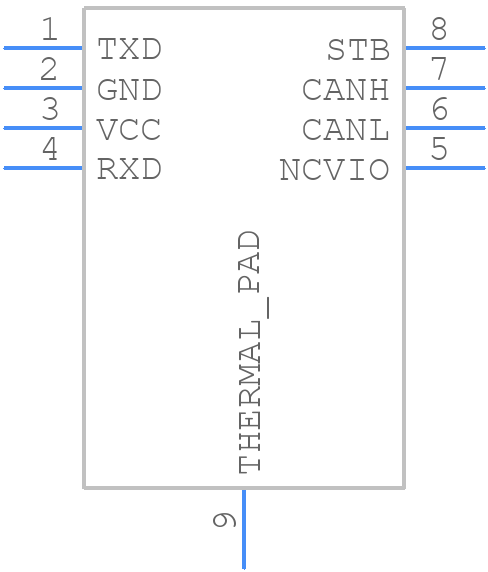

TCAN1462VDRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN1462VDRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - drb
click to zoom
3D Models
TCAN1462VDRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - drb
click to zoom

TCAN1462VDRBRQ1 Details

  • Manufacturer Part Number:

    TCAN1462VDRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCAN1462VDRBRQ1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TCAN1462VDRBRQ1 is -40°C to 125°C.
  • The CAN bus speed on the TCAN1462VDRBRQ1 can be configured through the SPI interface using the CANCTRL register. The bus speed can be set to 10 kbps, 20 kbps, 50 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, or 1000 kbps.
  • The maximum number of nodes that can be connected to a single CAN bus using the TCAN1462VDRBRQ1 is 127.
  • The TCAN1462VDRBRQ1 has built-in error detection and fault confinement mechanisms. The device can detect errors such as bit stuffing errors, CRC errors, and acknowledgement errors. In case of a fault, the device can be configured to enter a bus-off state, and the error can be cleared by resetting the device.
  • Yes, the TCAN1462VDRBRQ1 can be used in a multi-master configuration. The device supports non-destructive bit-wise arbitration, which allows multiple masters to share the bus without data corruption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCAN1462VDRBRQ1 Overview

Use the download button to access the TCAN1462VDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces
