- Part Number TCAN330D
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D0008A SOIC
- Released Date Dec 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TCAN330D Details
-
Manufacturer Part Number:
TCAN330D
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Data Rate:
1000 Mbps
TCAN330D Frequently Asked Questions (FAQs)
-
The maximum cable length supported by the TCAN330D is 40 meters, assuming a 120-ohm twisted-pair cable with a maximum propagation delay of 5 ns/m.
-
To configure the TCAN330D for CAN FD mode, set the CANMODE pin high and ensure that the device is powered up with a 3.3V supply. Additionally, the CAN FD mode must be enabled through the SPI interface by setting the FDEN bit in the CANCTRL register.
-
The TCAN330D supports data rates up to 5 Mbps in CAN FD mode and up to 1 Mbps in Classical CAN mode.
-
The TCAN330D has built-in error detection and fault handling mechanisms. The device can detect errors such as bit stuffing, CRC, and ACK errors, and can also detect bus faults such as bus-off and error passive states. The device can be configured to generate interrupts upon error detection, allowing the system to take corrective action.
-
Yes, the TCAN330D can be used in a multi-master configuration. The device supports non-return-to-zero (NRZ) encoding and has a built-in bit time quanta (TQ) adjustment mechanism, allowing it to operate in a multi-master environment.
Trust Checks
Community Provided
System Verified
Community Approved
TCAN330D Overview

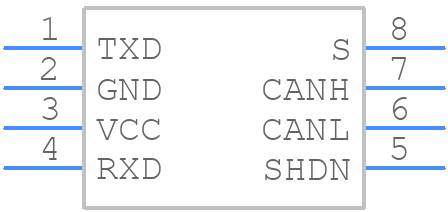

Use the download button to access the TCAN330D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
