TCAN332GDCNR - Texas Instruments

Description: 3.3-V CAN Transceivers with CAN FD (Flexible Data Rate)

Download TCAN332GDCNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

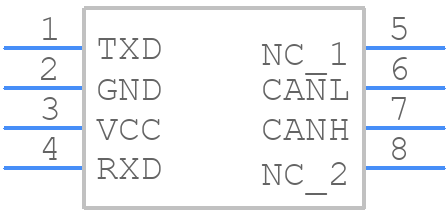

TCAN332GDCNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TCAN332GDCNR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOT-23 -8
click to zoom
3D Models
TCAN332GDCNR - Texas Instruments - 3D model - SOT23 (8-Pin) - SOT-23 -8
click to zoom

TCAN332GDCNR Details

  • Manufacturer Part Number:

    TCAN332GDCNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TCAN332GDCNR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TCAN332GDCNR is 40 meters, assuming a transmission rate of 1 Mbps and a bus load of 30 nodes.
  • The TCAN332GDCNR can be configured for a specific CAN bus speed by setting the SCL pin high or low. For example, to set the bus speed to 500 kbps, the SCL pin should be tied high. For 250 kbps, the SCL pin should be tied low.
  • The TCAN332GDCNR supports up to 110 nodes on a single CAN bus, assuming a bus load of 30 nodes per transceiver.
  • To ensure EMC with the TCAN332GDCNR, it is recommended to use a common-mode choke and a bypass capacitor on the power supply lines, and to follow proper PCB layout and grounding practices.
  • The TCAN332GDCNR operates over a temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
