The maximum cable length supported by the TCAN334GDR is 40 meters, assuming a 120-ohm twisted-pair cable with a maximum propagation delay of 5 ns/m.
The TCAN334GDR can be configured for a specific CAN bus speed by setting the SCL pin high or low, depending on the desired speed. For example, setting SCL high configures the device for a 500 kbps CAN bus speed, while setting SCL low configures it for a 125 kbps CAN bus speed.
The power consumption of the TCAN334GDR depends on the operating mode. In normal mode, the device consumes around 12 mA, while in standby mode, it consumes around 10 μA.
To ensure EMC with the TCAN334GDR, it is recommended to follow proper PCB layout and design guidelines, such as keeping the CAN bus traces short and away from noise sources, using a common-mode choke, and adding EMI filters if necessary.
Yes, the TCAN334GDR can be used in a fault-tolerant CAN bus system. The device has built-in fault-tolerant features, such as bus fault detection and reporting, to ensure reliable operation in the event of a fault.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN334GDR Overview

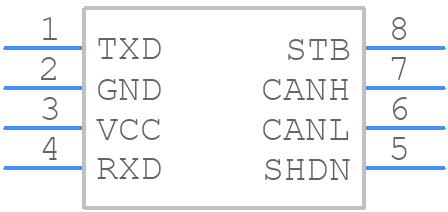

Use the download button to access the TCAN334GDR schematic symbol, PCB footprint, and 3D model.
