Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3403DDFRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and ISO 11898-2. Configuration is typically done through the microcontroller or external logic, and the specific configuration will depend on the protocol and application requirements. Refer to the datasheet and application notes for more information.
The maximum cable length supported by the TCAN3403DDFRQ1 depends on the specific application and the characteristics of the CAN bus. In general, the recommended maximum cable length is 40 meters, but this can be extended up to 100 meters or more with the use of repeaters or other signal conditioning devices.
Troubleshooting common issues with the TCAN3403DDFRQ1 typically involves using a logic analyzer or CAN bus analyzer to monitor the bus activity and identify the source of the problem. Texas Instruments also provides application notes and technical documentation that provide guidance on troubleshooting and debugging CAN bus issues.
Yes, the TCAN3403DDFRQ1 is rated for operation over an industrial temperature range of -40°C to 125°C, making it suitable for use in automotive and industrial applications. However, it's essential to ensure that the device is properly derated and thermal management is implemented to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3403DDFRQ1 Overview

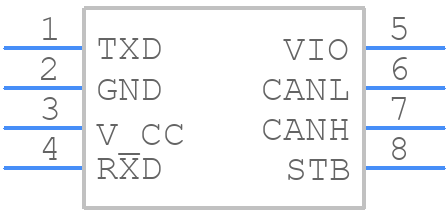

Use the download button to access the TCAN3403DDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
