Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3403DRBRQ1 can be configured for different CAN bus speeds by adjusting the bit timing registers (BTR) and the clock prescaler (CP). The datasheet provides a table with recommended settings for different bus speeds, and the device can be configured using the SPI interface or through the use of a microcontroller.
The maximum cable length supported by the TCAN3403DRBRQ1 depends on the bus speed and the type of cable used. According to the datasheet, the device supports cable lengths up to 40 meters at 1 Mbps and up to 10 meters at 500 kbps. However, the actual cable length may be limited by the specific application and the quality of the cable.
The TCAN3403DRBRQ1 has built-in error detection and fault handling mechanisms, including error counters, error flags, and bus fault detection. The device can also be configured to generate interrupts on error detection, allowing the microcontroller to take corrective action. The datasheet provides more information on how to handle bus faults and error detection.
The TCAN3403DRBRQ1 is a CAN transceiver that meets the ISO 11898-2 standard, which ensures compatibility with other CAN transceivers that meet the same standard. However, it's always recommended to verify compatibility with specific devices and systems before designing a system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3403DRBRQ1 Overview

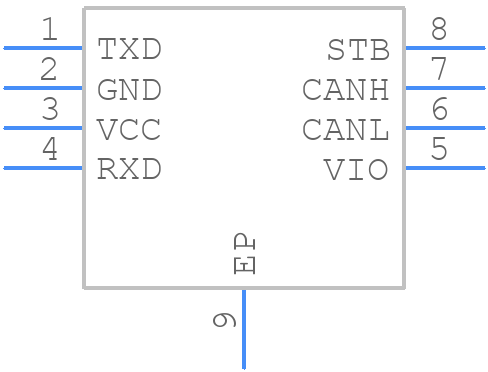

Use the download button to access the TCAN3403DRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
