Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB design, component placement, and signal routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3404DDFRQ1 can be configured for different CAN bus speeds by adjusting the bit timing registers (BTR) and the clock prescaler (CP). The datasheet provides a detailed explanation of the bit timing calculation and the required register settings for different bus speeds.
The maximum cable length supported by the TCAN3404DDFRQ1 depends on the bus speed and the cable characteristics. As a general guideline, the ISO 11898-2 standard recommends a maximum cable length of 40 meters for a 500 kbps CAN bus. However, the actual cable length may be shorter depending on the specific application and environment.
The TCAN3404DDFRQ1 has built-in error detection and fault handling mechanisms, including error counters, error flags, and bus fault detection. The device can also be configured to generate interrupts upon error detection, allowing the system to take corrective action. The datasheet provides detailed information on error detection and fault handling.
Yes, the TCAN3404DDFRQ1 can be used in a multi-master CAN bus configuration. The device supports non-return-to-zero (NRZ) encoding and has a built-in bit timing controller, which allows it to operate in a multi-master environment. However, the system designer must ensure that the device is properly configured and that the CAN bus is properly terminated to prevent reflections and ensure reliable communication.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3404DDFRQ1 Overview

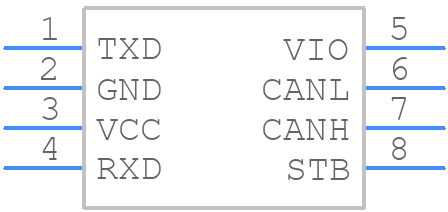

Use the download button to access the TCAN3404DDFRQ1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
