Texas Instruments provides a recommended layout and routing guidelines in the application note 'TCAN3404 Layout and Routing Guidelines' (SLVAE04). It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
The TCAN3404DRBRQ1 is a CAN transceiver, and the protocol configuration is typically handled by the microcontroller or CAN controller. The transceiver itself does not require protocol-specific configuration. However, you may need to configure the microcontroller or CAN controller to operate at the desired baud rate, bit timing, and protocol-specific settings.
The maximum cable length supported by the TCAN3404DRBRQ1 depends on the specific CAN bus implementation and the cable characteristics. As a general guideline, the CAN bus specification recommends a maximum cable length of 40 meters. However, this can be extended using repeaters or by using a more robust transceiver like the TCAN3404DRBRQ1, which can support longer cable lengths up to 100 meters or more, depending on the specific application.
Yes, the TCAN3404DRBRQ1 is designed to support fault-tolerant CAN bus systems. It features a high level of fault tolerance, including bus fault detection, and can operate in a fault-tolerant mode. This allows the system to continue operating in the presence of faults, such as a short circuit or open circuit, on one of the bus lines.
To ensure EMC with the TCAN3404DRBRQ1, follow the recommended layout and routing guidelines, use a shielded cable, and ensure proper grounding and shielding of the system. Additionally, consider using electromagnetic interference (EMI) filters or common-mode chokes to reduce emissions and improve immunity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3404DRBRQ1 Overview

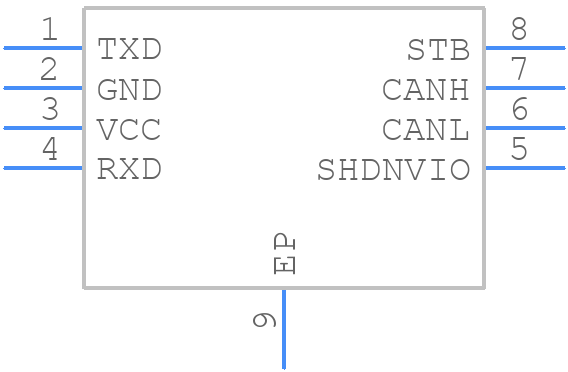

Use the download button to access the TCAN3404DRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
