Texas Instruments provides a recommended layout and routing guide in their application note SLVAE67, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3404DRQ1 is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. Configuration is typically done through the microcontroller or system-on-chip (SoC) that interfaces with the TCAN3404DRQ1. Refer to the microcontroller or SoC datasheet and the CAN bus protocol specification for configuration details.
The maximum cable length supported by the TCAN3404DRQ1 depends on the specific CAN bus protocol and the system design. In general, the CAN bus specification recommends a maximum cable length of 40 meters for a single segment. However, longer cable lengths can be achieved with the use of repeaters or by optimizing the system design. Consult the CAN bus specification and the system design requirements for specific guidance.
Texas Instruments provides a troubleshooting guide in their application note SLVAE68, which covers common issues and error conditions, including bus faults, error frames, and transmission errors. The guide provides step-by-step procedures for identifying and resolving these issues.
Yes, the TCAN3404DRQ1 is designed to operate over an extended temperature range of -40°C to 125°C, making it suitable for use in automotive and industrial applications. However, it's essential to ensure that the system design and components can also operate within the same temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TCAN3404DRQ1 Overview

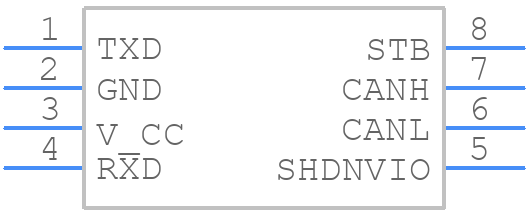

Use the download button to access the TCAN3404DRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
