Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3413DR is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. Configuration is typically done through the microcontroller or system-on-chip (SoC) that interfaces with the TCAN3413DR. The specific configuration will depend on the protocol requirements and the microcontroller or SoC used.
The maximum cable length supported by the TCAN3413DR depends on the specific CAN bus protocol and the system design. In general, the CAN bus specification recommends a maximum cable length of 40 meters for a single segment, but this can be extended using repeaters or bridges. The TCAN3413DR itself does not impose a specific cable length limit.
Troubleshooting CAN bus communication issues with the TCAN3413DR typically involves checking the physical connection, signal integrity, and protocol configuration. Tools such as oscilloscopes, logic analyzers, and CAN bus analyzers can be used to diagnose issues. Texas Instruments also provides a CAN bus troubleshooting guide in their application note SLVAE74.
Yes, the TCAN3413DR is designed to operate over an extended temperature range of -40°C to 125°C, making it suitable for use in automotive and industrial applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3413DR Overview

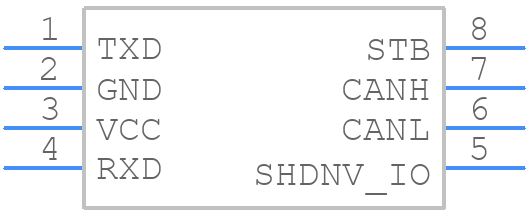

Use the download button to access the TCAN3413DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
