Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3413DRBR is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. Configuration is typically done through the microcontroller or external logic, which sets the transceiver's mode and bit rate. Refer to the datasheet and application notes for specific configuration details.
The maximum cable length supported by the TCAN3413DRBR depends on the specific CAN bus protocol and the system's bit rate. As a general guideline, the maximum cable length for a CAN bus system is around 40 meters at 1 Mbps. However, this can be extended using repeaters or by reducing the bit rate. Consult the datasheet and application notes for more information.
Texas Instruments provides a troubleshooting guide in their application note SLVAE74, which covers common issues and errors, including bus faults, transmission errors, and reception errors. The guide provides step-by-step procedures for identifying and resolving these issues.
Yes, the TCAN3413DRBR is designed to meet the requirements of various automotive and industrial standards, including ISO 11898-2, SAE J1939, and IEC 61076-2-1. It is also compliant with automotive electromagnetic compatibility (EMC) standards, such as ISO 7637 and IEC 62132.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3413DRBR Overview

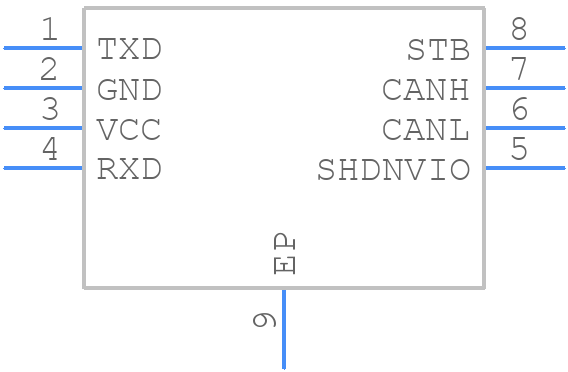

Use the download button to access the TCAN3413DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
