Texas Instruments provides a recommended layout and routing guide in their application note SLVAE73, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The TCAN3414DRBR is a CAN transceiver that supports various CAN bus protocols, including CAN 2.0A, CAN 2.0B, and SAE J1939. Configuration is typically done through the microcontroller or system-on-chip (SoC) that interfaces with the TCAN3414DRBR. Refer to the microcontroller or SoC datasheet and the CAN bus protocol specification for configuration details.
The maximum cable length supported by the TCAN3414DRBR depends on the specific CAN bus protocol and the system design. In general, the CAN bus specification recommends a maximum cable length of 40 meters for a single segment. However, longer cable lengths can be achieved by using repeaters or by optimizing the system design. Consult the CAN bus protocol specification and the system design requirements for specific guidance.
Texas Instruments provides a troubleshooting guide in their application note SLVAE74, which covers common issues and error scenarios with the TCAN3414DRBR. Additionally, the CAN bus protocol specification provides guidelines for error handling and fault detection. Consult these resources and the system design documentation for specific troubleshooting guidance.
Yes, the TCAN3414DRBR is rated for operation over an industrial temperature range of -40°C to 125°C and an automotive temperature range of -40°C to 150°C. However, the specific temperature range and operating conditions may vary depending on the application and system design. Consult the datasheet and the system design requirements for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCAN3414DRBR Overview

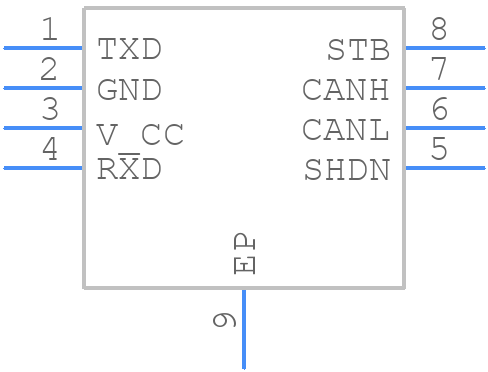

Use the download button to access the TCAN3414DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCAN3,
or try a keyword search, such as Network Interfaces
