Part Image

TCB001HQ - Toshiba

Description: 45W / Class AB / DC offset detection / Speaker burning prevention / 6V Cruising ,4-ch Audio Power IC ,HZIP25-P-1.00F .

Download TCB001HQ Model

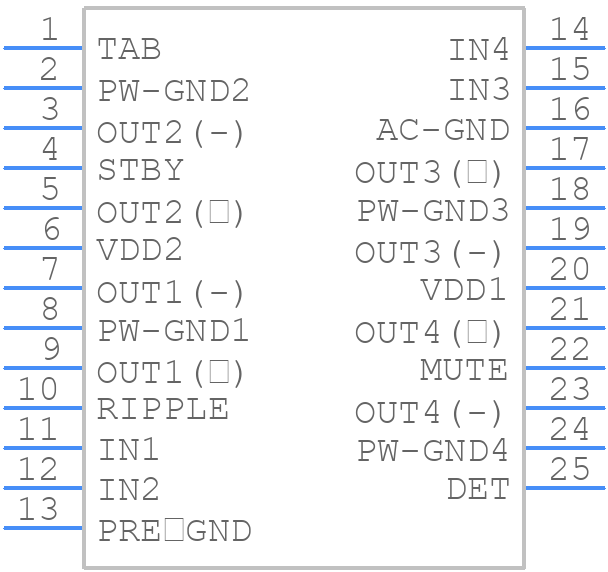

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

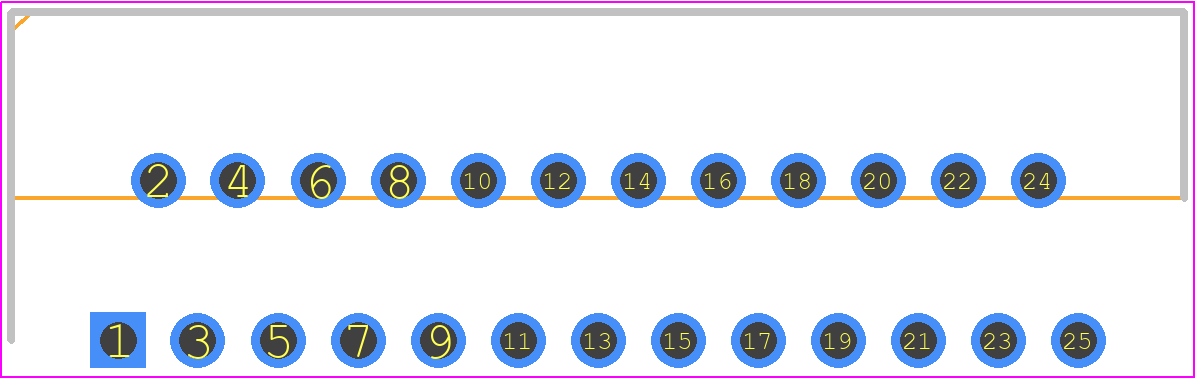

TCB001HQ - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - HZIP25-P-1.00F
click to zoom
3D Models
TCB001HQ - Toshiba  - 3D model - Transistor Outline, Vertical - HZIP25-P-1.00F
click to zoom

TCB001HQ Details

  • Manufacturer Part Number:

    TCB001HQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-XZFM-T25

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

TCB001HQ Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane and a thermal relief pattern under the IC to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
  • Although the datasheet doesn't specify a maximum allowed voltage, it's generally recommended to limit the input voltage to 5.5V to prevent damage to the internal ESD protection diodes.
  • Yes, the TCB001HQ can be used in switching regulator applications. However, it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations.
  • To prevent latch-up or damage, it's recommended to power up the VCC pin before applying any input signals. A power-up sequence of VCC, then input signals, is recommended.
