- Part Number TCD-20-4X+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TCD-20-4X+-2
- Released Date May 25, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TCD-20-4X+ Details
-
Manufacturer Part Number:
TCD-20-4X+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT, CASE DB1627, 6 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.69
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
30 dBm
-
Insertion Loss-Max:
1.1 dB
TCD-20-4X+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The TCD-20-4X+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application notes.
-
The TCD-20-4X+ can handle up to +20 dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
-
The TCD-20-4X+ requires a positive voltage supply (Vcc) of +5V to +12V, and a negative voltage supply (Vee) of -5V to -12V. The recommended bias current is 100 mA to 200 mA. Refer to the datasheet for more information on biasing and power supply requirements.
-
The TCD-20-4X+ operates over a temperature range of -40°C to +85°C. However, optimal performance is achieved between 0°C to +50°C.
Trust Checks
Expert Contribution
System Verified
Community Approved
TCD-20-4X+ Overview

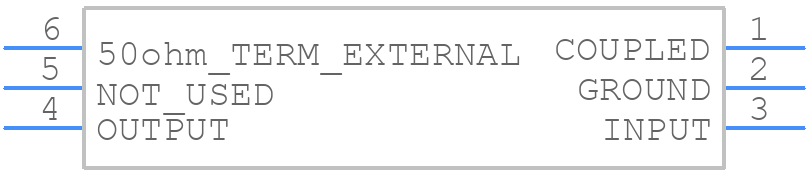

Use the download button to access the TCD-20-4X+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCD-2,
or try a keyword search, such as RF/Microwave Couplers
