TCD1304AP footprint, schematic symbol and 3D model by Toshiba

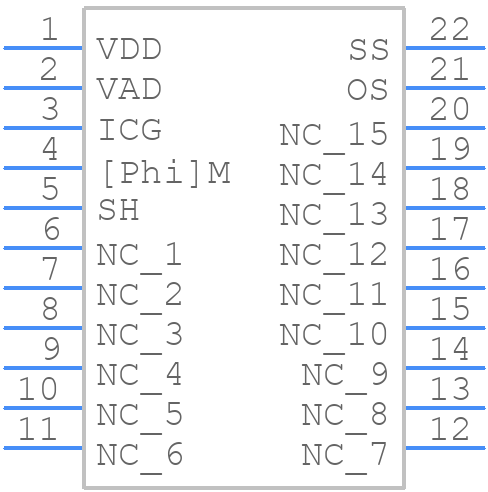

Symbol

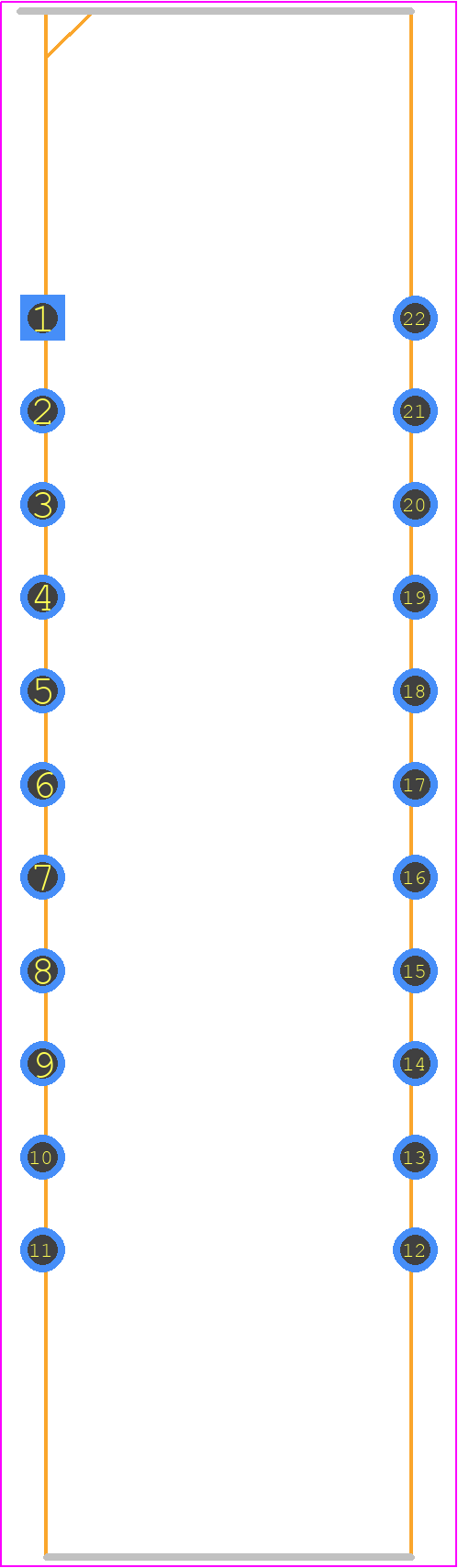

PCB Footprints

3D Models

TCD1304AP Details

The recommended operating temperature range for the TCD1304AP is -20°C to 70°C, although it can operate up to 85°C with reduced performance.
To prevent damage, handle the TCD1304AP by the edges, avoid touching the pins, and use an anti-static wrist strap or mat during PCB assembly.
The maximum clock frequency that the TCD1304AP can support is 20 MHz, although it can operate at lower frequencies with reduced power consumption.
To optimize ADC performance, ensure proper power supply decoupling, use a low-noise analog power supply, and minimize digital noise coupling to the analog circuitry.
While the TCD1304AP is not specifically designed for high-humidity environments, it can operate in humid conditions with proper packaging and sealing to prevent moisture ingress.

Community Provided

System Verified

Community Approved

Use the download button to access the TCD1304AP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TCD13, or try a keyword search, such as Image Sensors
