TCD1304DG - Toshiba

Description: Image Sensors 3648 Pixel, 8X200um

Download TCD1304DG Model

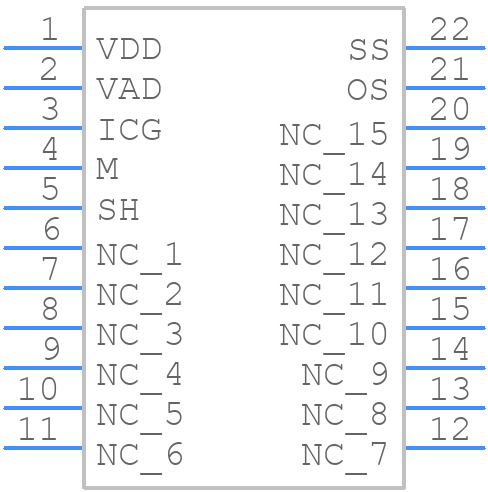

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

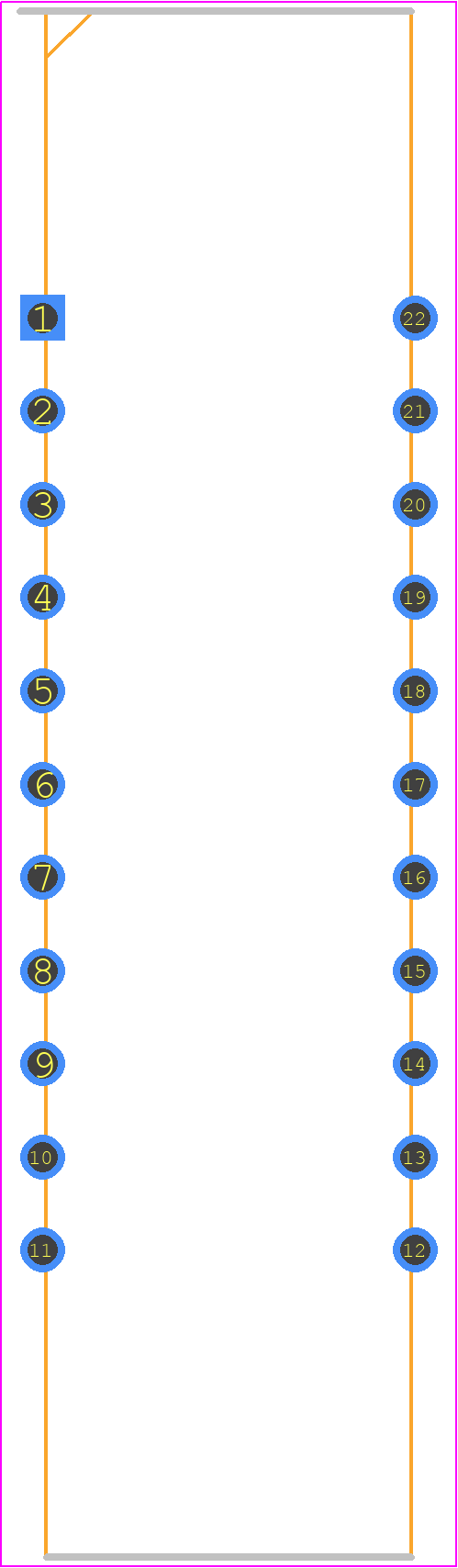

TCD1304DG - Toshiba PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - WDIP22-G-400-2.54H
click to zoom
3D Models
TCD1304DG - Toshiba  - 3D model - Ceramic Dual-In-Line Packages - WDIP22-G-400-2.54H
click to zoom

TCD1304DG Details

  • Manufacturer Part Number:

    TCD1304DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.9

  • Additional Feature:

    ELECTRONIC SHUTTER

  • Array Type:

    LINEAR

  • Body Breadth:

    9.65 mm

  • Body Height:

    3.22 mm

  • Body Length or Diameter:

    41.6 mm

  • Data Rate:

    1 Mbps

  • Dynamic Range:

    49.54 dB

  • Housing:

    CERAMIC

  • Master Clock:

    2 MHz

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Range:

    1.50-3.50V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pixel Size:

    8X200 µm

  • Sensitivity (V/lx.s):

    160 V/lx.s

  • Sensors/Transducers Type:

    IMAGE SENSOR,CCD

  • Spectral Response (nm):

    400-1200

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TCD1304DG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TCD1304DG is -20°C to 70°C. However, it can operate up to 85°C with reduced performance.
  • The clock frequency for the TCD1304DG should be optimized based on the specific application requirements. A higher clock frequency can improve the ADC's conversion speed, but it may also increase power consumption and noise. A typical clock frequency range is 1-4 MHz.
  • Input capacitance can affect the TCD1304DG's performance by introducing noise and distortion. It is recommended to keep the input capacitance as low as possible (less than 10 pF) to minimize these effects.
  • The TCD1304DG outputs 14-bit digital data in a serial format. The output data format can be configured as either MSB-first or LSB-first, depending on the application requirements. The user should ensure that the receiving device is configured to match the output data format.
  • The TCD1304DG has a power-down mode that reduces power consumption to less than 1 μA. This mode can be entered by setting the PD pin high. The user should ensure that the device is properly configured before entering power-down mode to avoid data loss or corruption.
