TCD2400DG - Toshiba

Description: TOSHIBA Linear Image Sensor CCD (Charge Coupled Device) 3.3 V & 10.0 V, 4096 elements x 3 lines, 7 μm by 7 μm on 7μm center

Download TCD2400DG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TCD2400DG model

Email notifications will be applied after download.

Send part feedback

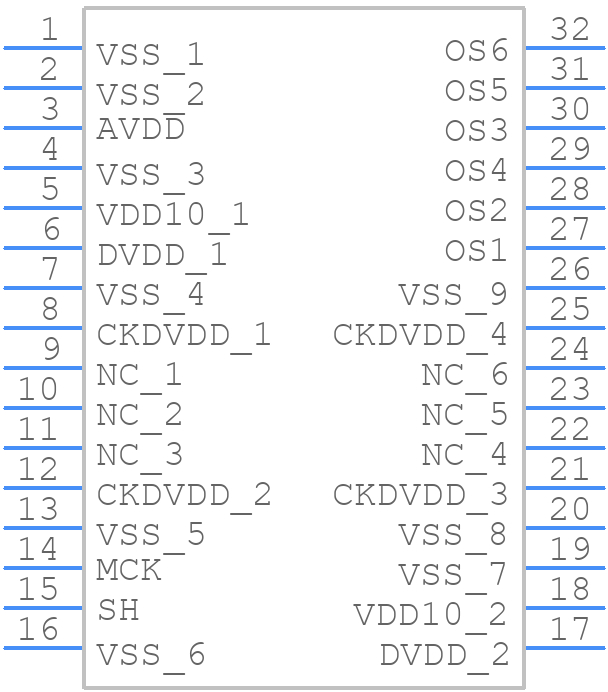

Symbol

TCD2400DG - Toshiba - PCB symbol

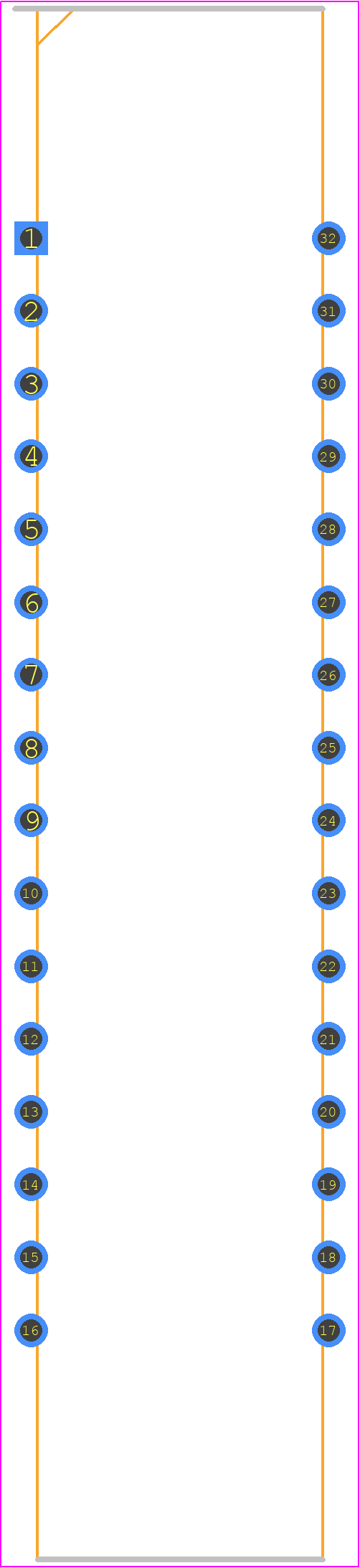

PCB Footprints

TCD2400DG - Toshiba PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - WDIP32-G-400-2.54_2026

3D Models

TCD2400DG - Toshiba - 3D model - Ceramic Dual-In-Line Packages - WDIP32-G-400-2.54_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCD2400DG
Part Number TCD2400DG
Manufacturer Toshiba
Pin Count 32
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - WDIP32-G-400-2.54_2026
Released Date Feb 17, 2026
Last Modified Date Mar 3, 2026 1:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TCD2400DG Details

Manufacturer Part Number:
TCD2400DG
Part Life Cycle Code:
Active
Manufacturer:
Toshiba America Electronic Components
YTEOL:
5
Sensors/Transducers Type:
IMAGE SENSOR,CCD

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TCD2400DG Overview

Use the download button to access the TCD2400DG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TCD24, or try a keyword search, such as Image Sensors
