TCET4100 - Vishay

Description: Transistor Output Optocouplers Phototransistor Out Quad CTR 50-600%

Download TCET4100 Model

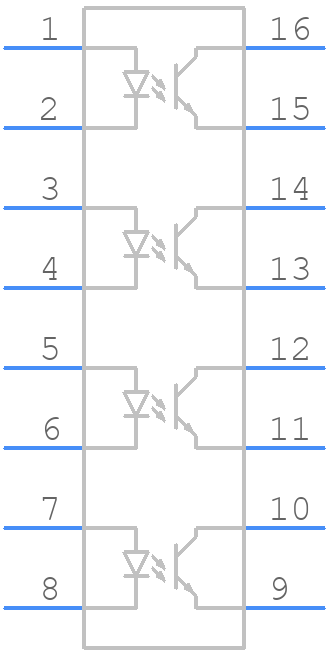

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

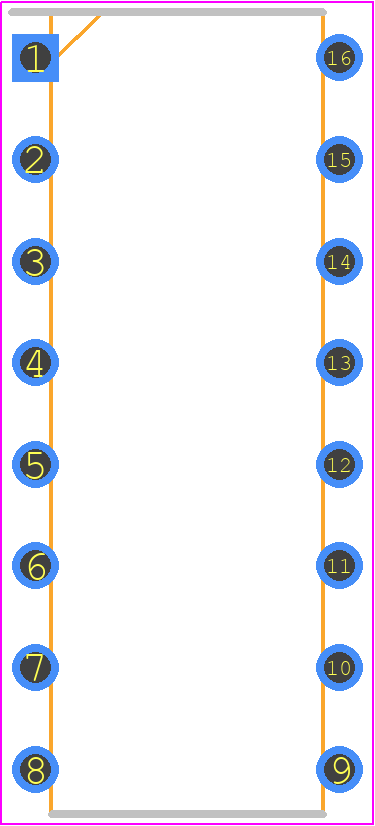

TCET4100 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
TCET4100 - Vishay  - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

TCET4100 Details

  • Manufacturer Part Number:

    TCET4100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    600%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    MATTE TIN

TCET4100 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance involves placing the TCET4100 near the edge of the board, using a large copper area for heat sinking, and minimizing thermal resistance by using thermal vias and a solid copper plane.
  • To ensure accurate temperature measurement, it's essential to follow proper installation and calibration procedures, use a high-quality thermocouple, and minimize noise and interference in the measurement circuit.
  • The maximum junction temperature (Tj) for the TCET4100 is 150°C, which is the maximum temperature the device can withstand without damage or degradation.
  • While the TCET4100 can operate up to 150°C, it's not recommended for high-temperature applications above 125°C due to potential degradation of the device's accuracy and reliability.
  • To minimize EMI, use proper shielding, grounding, and filtering techniques, such as using a shielded cable, a common-mode choke, and a low-pass filter in the measurement circuit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCET4100 Overview

Use the download button to access the TCET4100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCET4, or try a keyword search, such as Optocoupler
