TCK-149 - Traco Power

Description: FIXED IND 22UH 1.1A 240MOHM SMD-1

Download TCK-149 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TCK-149 - Traco Power - PCB symbol
click to zoom
PCB Footprints

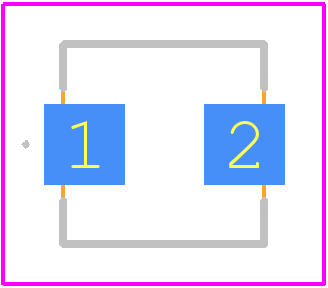

TCK-149 - Traco Power PCB footprint - Other - Other - TCK-149-2
click to zoom
3D Models
TCK-149 - Traco Power - 3D model - Other - TCK-149-2
click to zoom

TCK-149 Details

  • Manufacturer Part Number:

    TCK-149

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Traco Power

  • YTEOL:

    6

  • Case/Size Code:

    2120

  • Construction:

    Rectangular

  • DC Resistance:

    0.24 Ω

  • Inductance-Nom (L):

    22 µH

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    2.7 mm

  • Package Length:

    5.3 mm

  • Package Style:

    SMT

  • Package Width:

    5 mm

  • Rated Current-Max:

    1.1 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    No

  • Surface Mount:

    Yes

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

TCK-149 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TCK-149 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the TCK-149 is designed to withstand high-vibration environments, with a vibration test specification of 10-2000 Hz, 2G amplitude, 1 hour per axis.
  • The recommended input capacitor value for the TCK-149 is 10uF to 22uF, with a voltage rating of at least 25V.
  • Yes, the TCK-149 is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C, non-condensing.
  • The MTBF of the TCK-149 is approximately 1.5 million hours, calculated according to MIL-HDBK-217F.
