TCK22913G,LF - Toshiba

Description: Power Switch ICs - Power Distribution Load Switch 2.0A 1.1V to 5.5V

Download TCK22913G,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

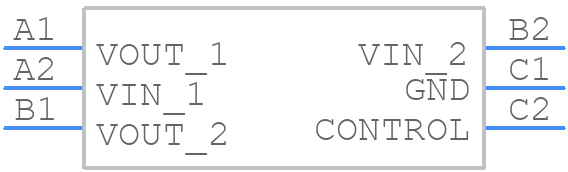

Symbol
TCK22913G,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK22913G,LF - Toshiba PCB footprint - BGA - BGA - TCK22913G,LF-
click to zoom
3D Models
TCK22913G,LF - Toshiba - 3D model - BGA - TCK22913G,LF-
click to zoom

TCK22913G,LF Details

  • Manufacturer Part Number:

    TCK22913G,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    THERMAL SHUTDOWN:170C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    0.77

  • Width:

    0.8 mm

TCK22913G,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation, follow the recommended operating temperature range (−40°C to 150°C), and consider using a heat sink or thermal interface material to reduce junction temperature.
  • Although not explicitly stated in the datasheet, it's recommended to limit the input voltage to 5.5V to prevent damage to the internal ESD protection diodes.
  • Yes, the TCK22913G,LF is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize ringing and EMI.
  • The POR and BOR functions are internally implemented, and no external components are required. However, ensure that the power supply ramp-up time is within the recommended range to prevent false resets.
