TCK22921G,LF - Toshiba

Description: Power Switch 2-OUT 2A 0.136Ohm 6-Pin WCSP-E T/R

Download TCK22921G,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

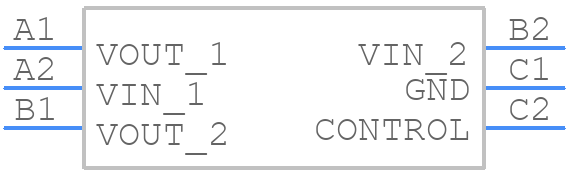

TCK22921G,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK22921G,LF - Toshiba PCB footprint - BGA - BGA - WCSP6E-1
click to zoom
3D Models
TCK22921G,LF - Toshiba - 3D model - BGA - WCSP6E-1
click to zoom

TCK22921G,LF Details

  • Manufacturer Part Number:

    TCK22921G,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.59 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm

TCK22921G,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation, follow the recommended operating temperature range (−40°C to 150°C), and consider using a heat sink or thermal interface material to reduce junction temperature.
  • Although not explicitly stated in the datasheet, the maximum allowed voltage for the input pins is typically limited to the supply voltage (VCC) + 0.3V to prevent damage from electrostatic discharge (ESD).
  • Yes, the TCK22921G,LF is suitable for high-frequency switching applications up to 100 kHz, but be aware of the device's switching characteristics, such as rise and fall times, to ensure proper operation.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure that the device is stored in an anti-static package to prevent damage during handling and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCK22921G,LF Overview

Use the download button to access the TCK22921G,LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCK22, or try a keyword search, such as Power Management Circuits
