TCK22951G,LF - Toshiba

Description: Power Switch ICs - Power Distribution Load Switch 0.74A 1.4V to 5.5V

Download TCK22951G,LF Model

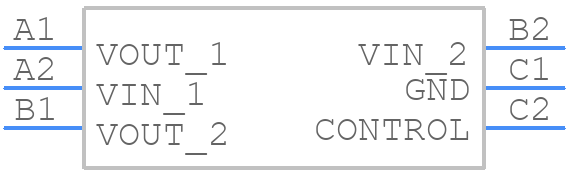

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCK22951G,LF - Toshiba PCB footprint - BGA - BGA - bga-6
click to zoom
3D Models
TCK22951G,LF - Toshiba  - 3D model - BGA - bga-6
click to zoom

TCK22951G,LF Details

  • Manufacturer Part Number:

    TCK22951G,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:0.74A

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.59 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.4 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.77V

  • Width:

    0.8 mm

TCK22951G,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane and thermal vias under the package to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring junction temperature.
  • Toshiba recommends soldering conditions of 260°C peak temperature, 10-30 seconds dwell time, and 1-2°C/s ramp rate to prevent damage to the device.
  • While the TCK22951G,LF is designed to be robust, it's still important to follow proper mounting and mechanical design practices to ensure reliable operation in high-vibration environments. Consult Toshiba's application notes for guidance.
  • Toshiba recommends following proper ESD handling and protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials, to prevent damage to the device.
